Single phase 208/230 voltage 37.9 min circuit amps 32.6 FLA
25.4 Width x 30.6 Depth x 54.5 High 458 LBS

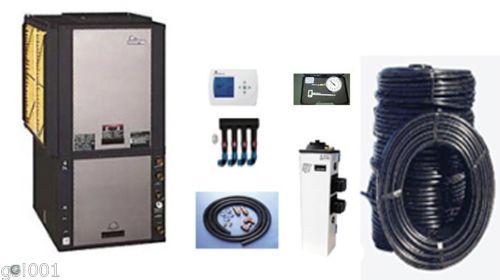

Kit Includes:

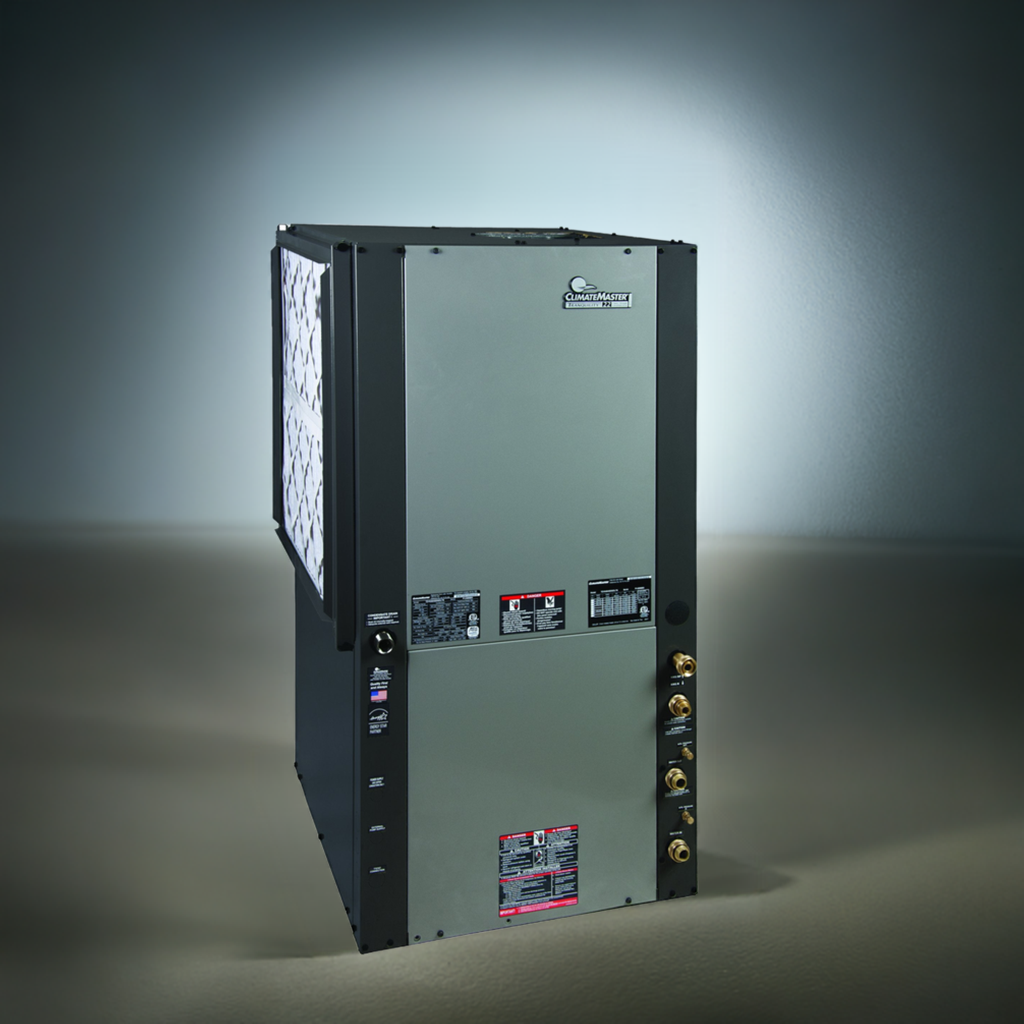

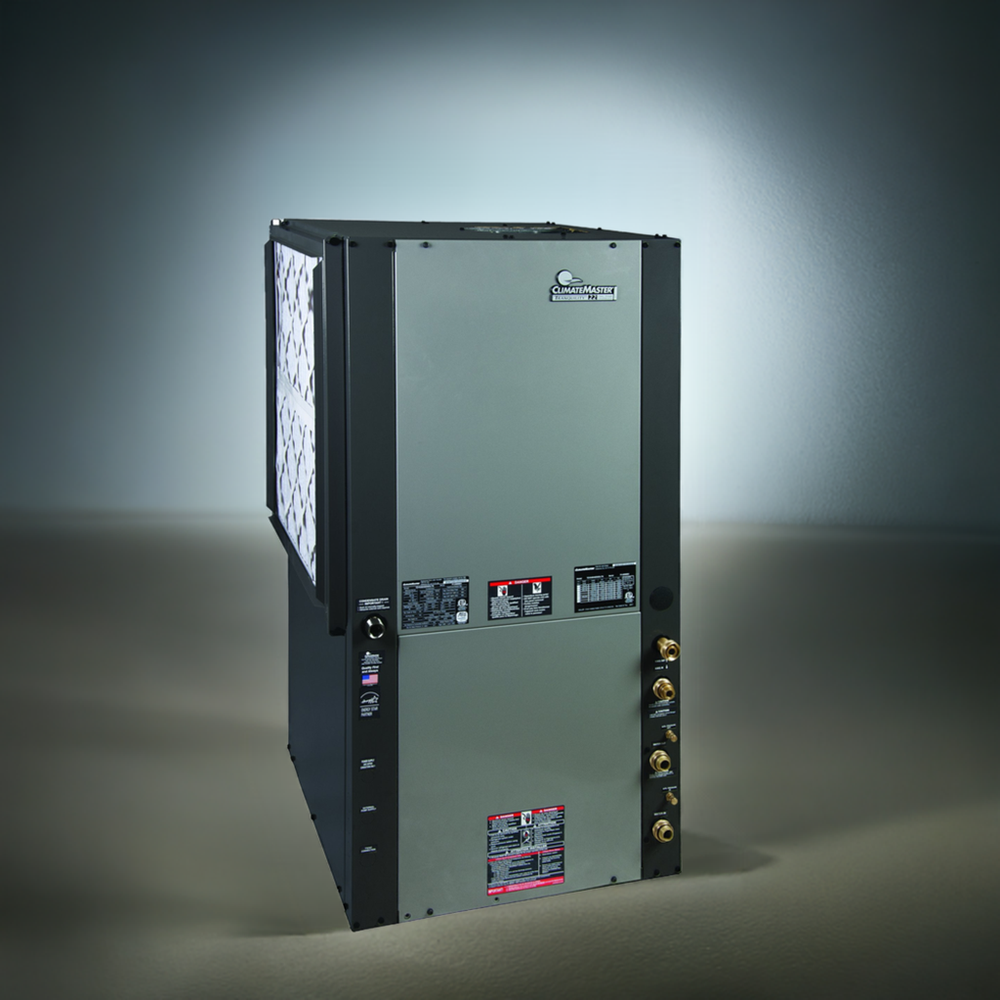

4 ton 2 stage TEV049BGD00CLTS

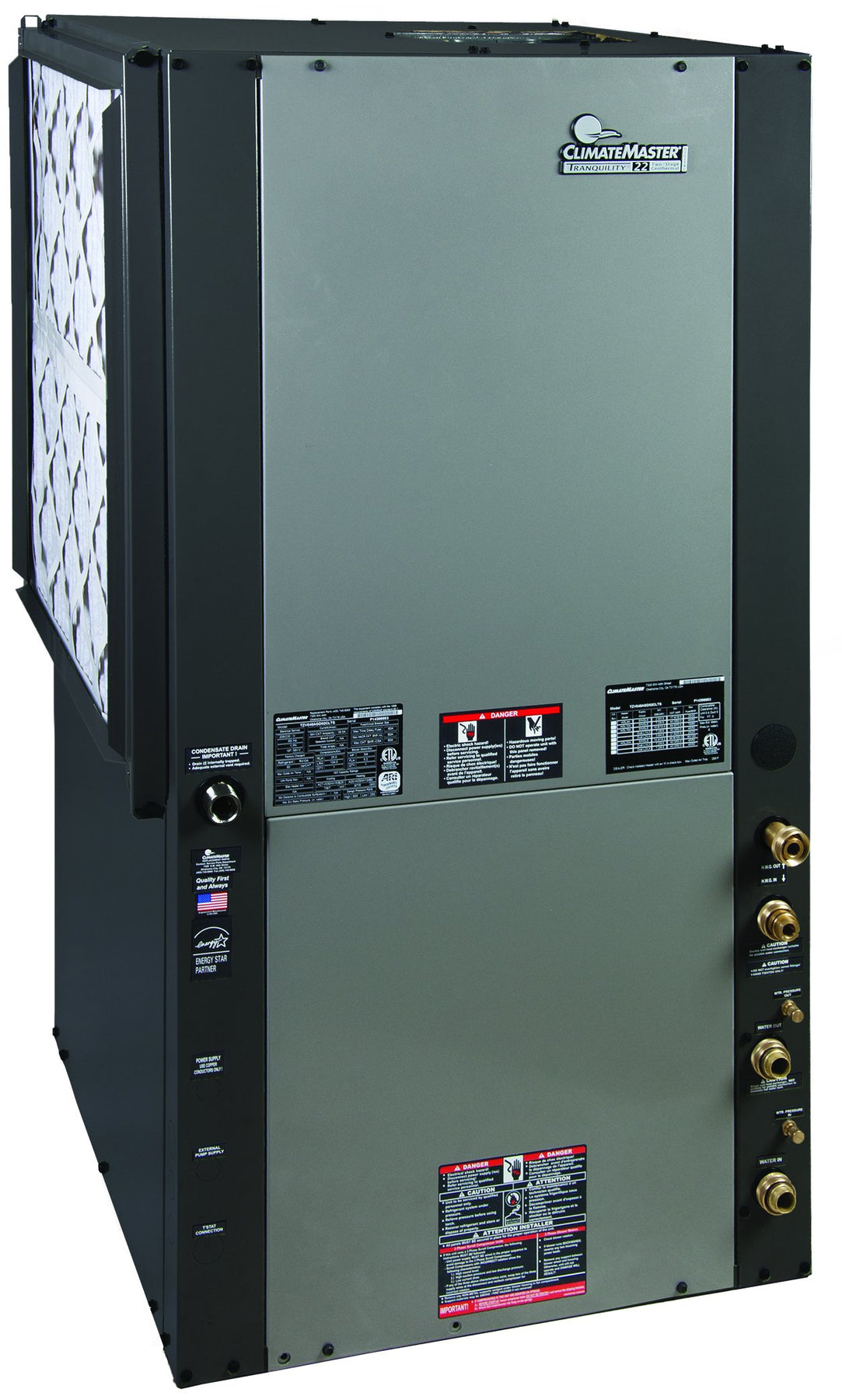

Desuperheater and ECM motor/Upflow
B&D QT 2 pump flow center
Hose kit and fittings
Thermostat (3 heat/2 cool)
Interior manifold
4 rolls of 800 feet lengths of 3/4'' hdpe geothermal pipe or 4 rolls of 410 feet lengths of hdpe loops (205 up/205 down with ubend)
(Photo is a stock photo. This package includes 2 rolls of pipe.)
*Needs Climatemaster ATC32U02 Communicating Thermostat to make this system operate properly.
10 year parts and 5 year labor allowance warranty
Click here for installation manual.
Click here for product catalog.
10 year parts and 5 year labor warranty
Free shipping to LTL freight center or business with dock or forklift.
*Free gift with Purchase*
Technician's test Kit - includes pressure gauge with needle for the PT port testing, digital temperature probe and compact padded case. This kit allows technicians to diagnose and trouble shoot Geothermal systems, calibrate flow rates, determine super heat of system for performance testing
